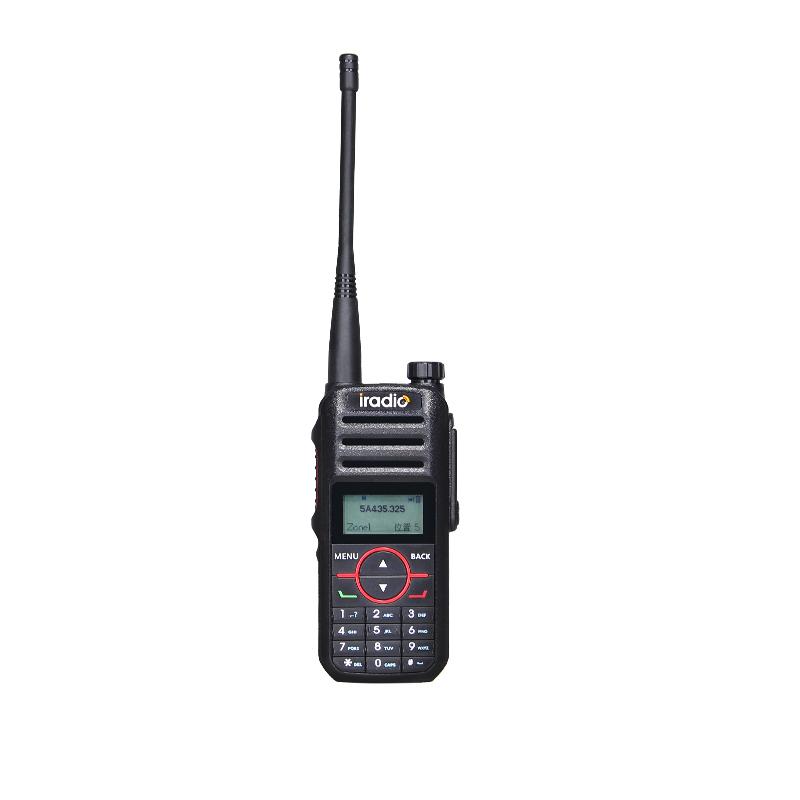

DP-580 digital portable two way radios

DP-580 , FM function


  • Item NO.:

    DP-580
  • Order(MOQ):

    2
  • Payment:

    T/T, Paypal, Western Union, Alibaba
  • Product Origin:

    China
  • Color:

    black
  • Product Detail



Main Features:


  • 5W output power, long talking range
  • Clear and high quality audio
  • Wide frequency range:
 VHF:136-174MHz;
  • 1024 programmable channels
  • CTCSS/DCS code




  • TOT
  • Wide/Narrow band selection
  • Built-in VOX
  • Emergency alarm
  • High/low power selection



Specifications

General
Frequency Range 136-174MHz
Channel Capacity 1024
Cnannel Spacing 12.5KHz/25KHz
Antenna Impedance 50Ω
Working Voltage 7.4V DC
Working Temperature -10°~+35°
Dimension 140mm*57mm*38mm
Weight 28
Transmitter
RF Output Power ≤5W
Modulation Mode 4FSK
Maximum Frequency Deviation ≤5KHz/2.5KHz
Adjacent Channel Power -65dB/-60dB
Stray Power ≤7.5uW
Receiver
RX Sensitivity <0.18μV
Audio Distortion ≤7%
Audio Output Power ≤1W
Intermodulation 60dB
Clutter Suppression ≥65dB
